Simple Circuits

IR Beacon Oscillator Created for the 2004 First Robotics Competition:

(Suggestion: Print in Landscape Mode)

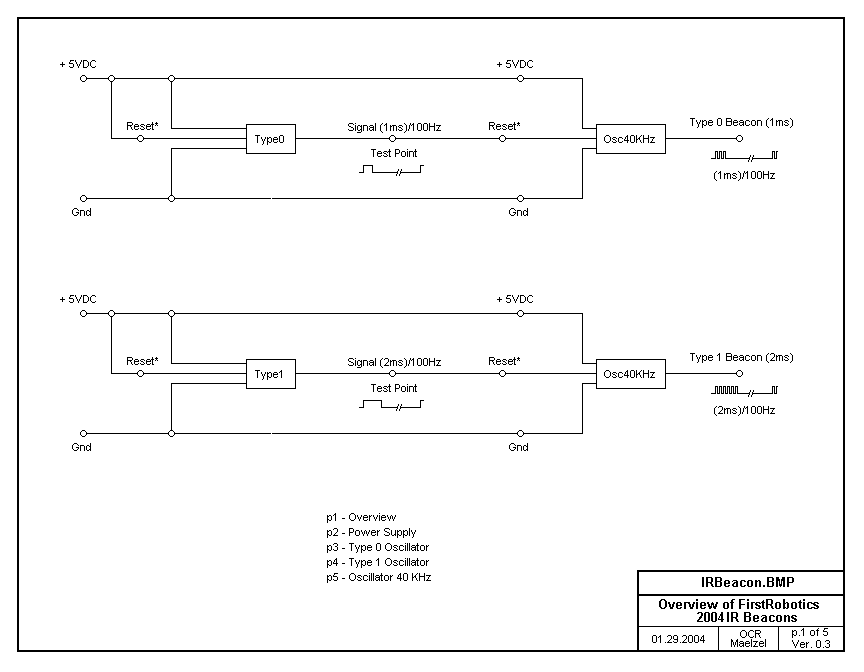

1. IRBeacon.GIF - Page 1 of 5; an overview.
2. PwrSpply.GIF - Page 2 of 5; a regulated power supply.
3. OscType0.GIF - Page 3 of 5; the 1 ms / 100 Hz Osc.

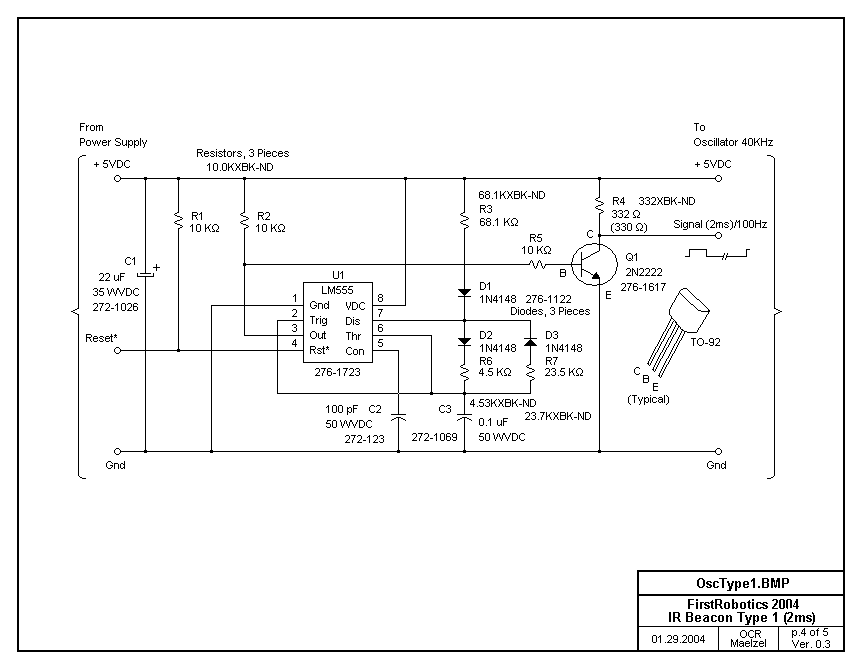

4. OscType1.GIF - Page 4 of 5; the 2 ms / 100 Hz Osc.

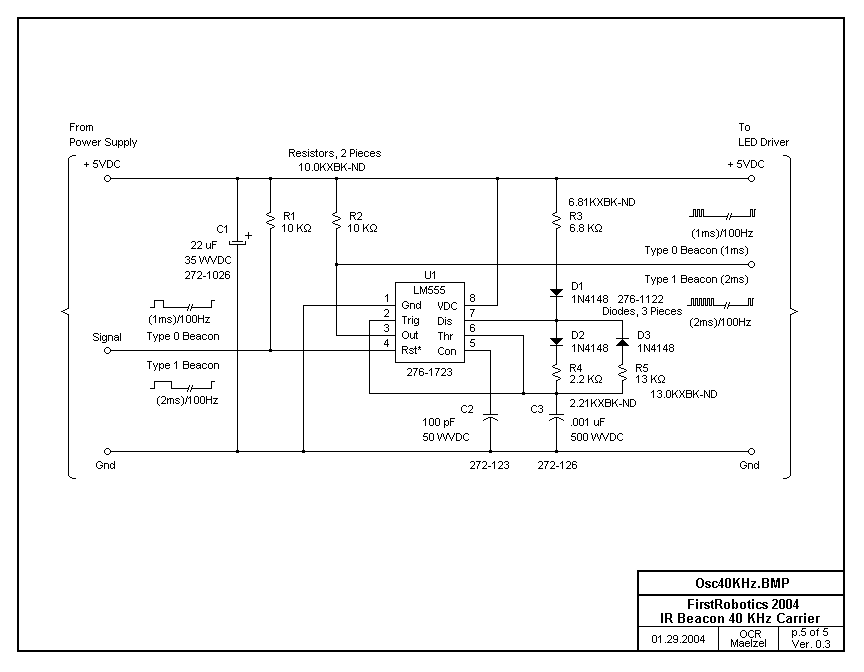

5. Osc40KHz.GIF - Page 5 of 5; the Hi Freq Oscillator.

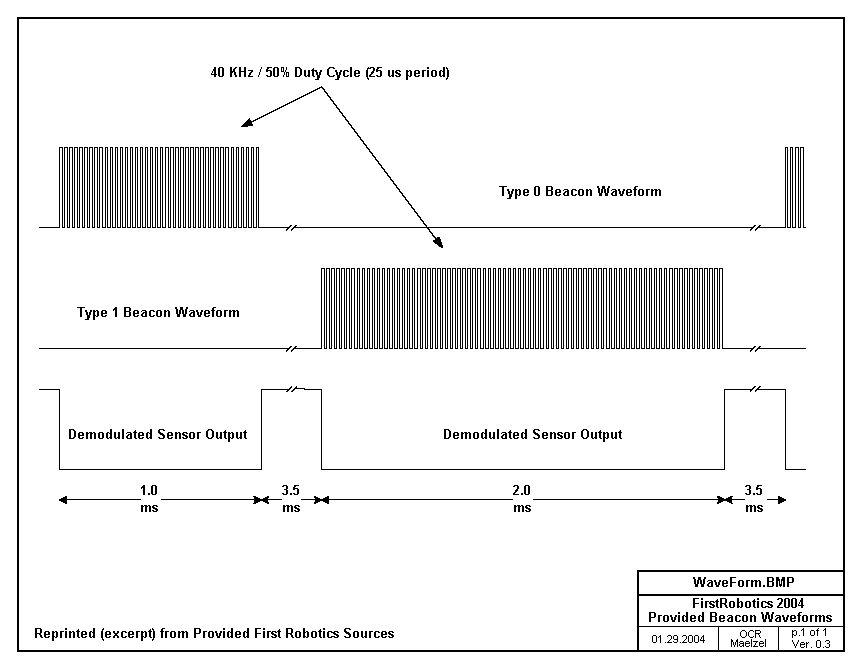

6. WaveForm.GIF - 2004 competition required waveform examples.

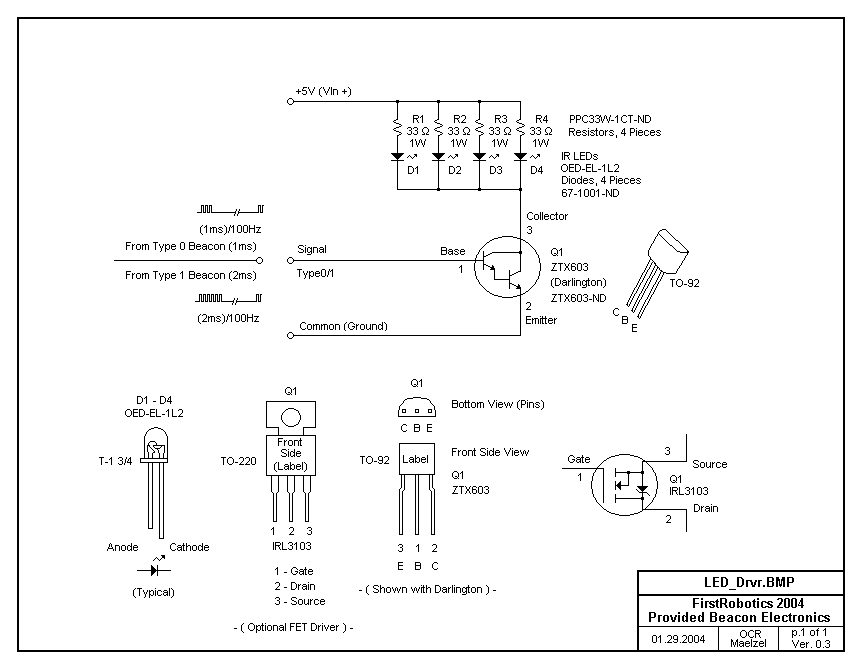

7. LED_Drvr.GIF - Darlington drivers for LEDs.

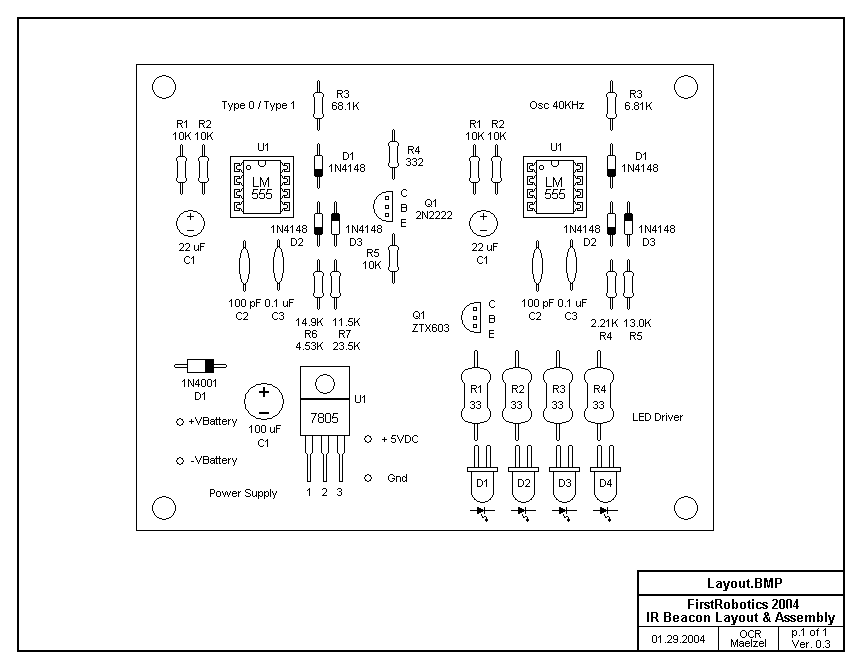

8. Layout.GIF - The assembly layout drawing.

Construction Documents for the 2004 IR Beacon Oscillator:

1. Construction.TXT - Contains text describing some basic ideas.
2. PartsList.TXT- Contains a parts list from Radio Shack & Digi-Key.
